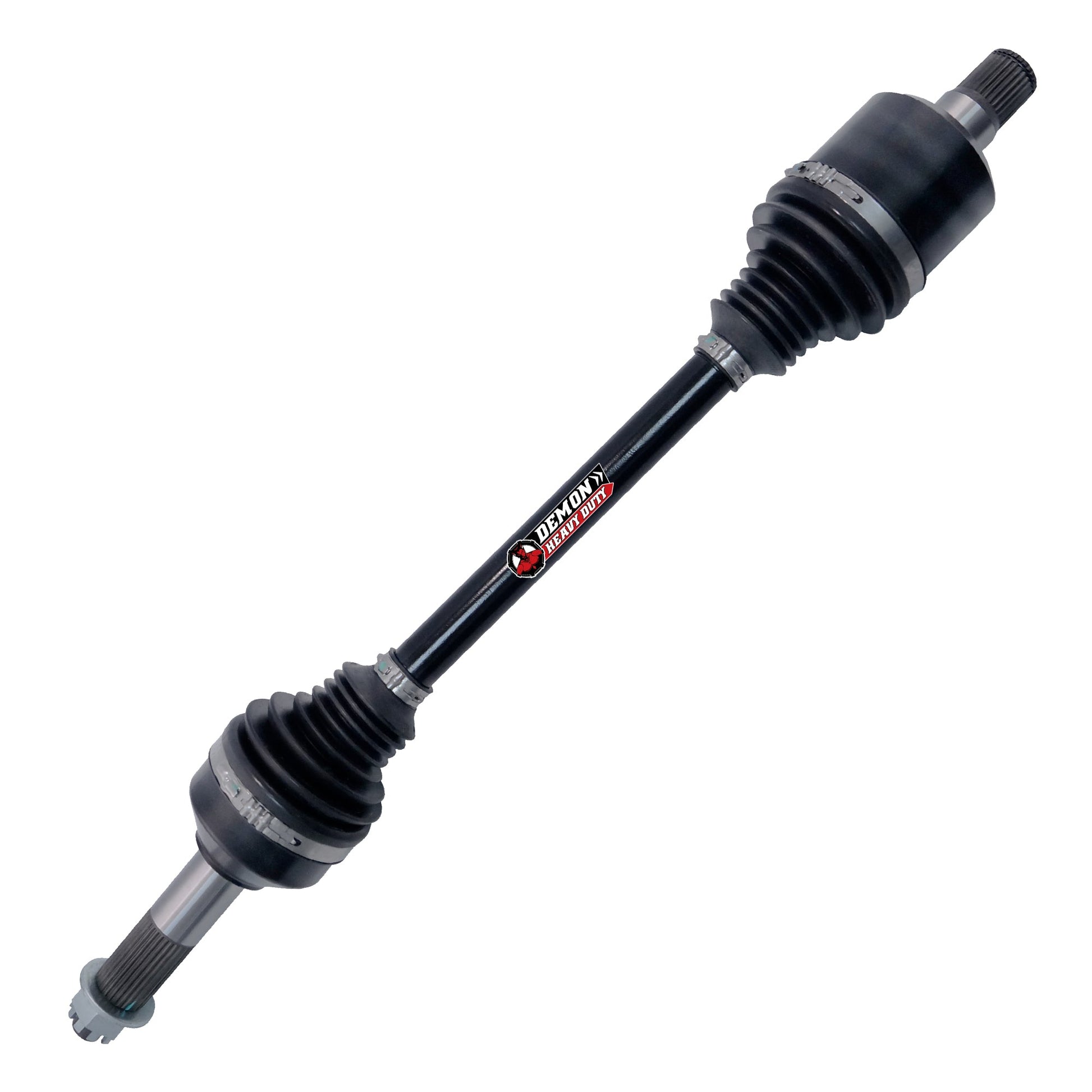

Demon HD Axle for 2016-2019 Can-Am Renegade 570,850 Rear Right

OEM Ref
705501486
705500977
705500983
705500977

Competitor Reference
TA-B-OUT800-RR

Fitment Summary
2006 Can-Am Outlander 400 HO 4x4 Rear Right
2006 Can-Am Outlander 400 HO 4x4 XT Rear Right
2006 Can-Am Outlander 650 HO EFI 4x4 Rear Right
2006 Can-Am Outlander 650 HO EFI 4x4 XT Rear Right
2006 Can-Am Outlander 800 HO EFI 4x4 Rear Right
2006 Can-Am Outlander 800 HO EFI 4x4 XT Rear Right
2007-2008 Can-Am Outlander 400 HO Rear Right
2007-2008 Can-Am Outlander 400 HO XT Rear Right
2007-2010 Can-Am Outlander 500 HO 4x4 EFI Rear Right
2007-2010 Can-Am Outlander 500 HO 4x4 EFI XT Rear Right
2007-2010 Can-Am Outlander 650 HO 4x4 EFI Rear Right
2007-2010 Can-Am Outlander 650 HO 4x4 EFI XT Rear Right
2007-2010 Can-Am Outlander 800 HO 4x4 EFI Rear Right
2007-2010 Can-Am Outlander 800 HO 4x4 EFI XT Rear Right
2008-2010 Can-Am Outlander 400 HO EFI Rear Right
2008-2010 Can-Am Outlander 400 HO EFI XT Rear Right
2010 Can-Am Outlander 500 HO 4x4 EFI XT-P Rear Right
2010-2016 Can-Am Outlander 650 EFI XT-P Rear Right
2010-2015 Can-Am Outlander 800R EFI XT-P Rear Right
2011-2015 Can-Am Outlander 400 EFI Rear Right
2011-2014 Can-Am Outlander 400 EFI XT Rear Right
2011-2015 Can-Am Outlander 500 EFI Rear Right
2011-2015 Can-Am Outlander 500 EFI XT Rear Right
2011-2016 Can-Am Outlander 650 EFI Rear Right
2011-2016 Can-Am Outlander 650 EFI XT Rear Right
2011-2015 Can-Am Outlander 800R EFI Rear Right
2011 Can-Am Outlander 800R EFI X xc Rear Right
2011-2015 Can-Am Outlander 800R EFI XT Rear Right
2012 Can-Am Outlander 800R EFI X mr Rear Right
2013-2015 Can-Am Outlander 500 EFI DPS Rear Right
2013-2016 Can-Am Outlander 650 EFI DPS Rear Right
2013-2015 Can-Am Outlander 650 X mr Rear Right
2013-2015 Can-Am Outlander 800R EFI DPS Rear Right
2015 Can-Am Outlander L 500 Rear Right
2017-2018 Can-Am Outlander 650 Rear Right
2017 Can-Am Outlander 650 6x6 DPS Rear Right
2017-2018 Can-Am Outlander 650 DPS Rear Right
2017-2018 Can-Am Outlander 650 XT Rear Right
2018 Can-Am Outlander 650 North Edition Rear Right

Description
Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

Features
15%-20% increase in diameter compared to regular axle
Inner cage made up of 4340 chromoly steel
Dual heat treated high strength chromoly steel shaft
Thermoplastic polyester elastomer (TPEE) Boot
10%-15% increase in CV joint size compared to regular joints
Wider articulation angles
Dual plunge design prevents axle from binding
Packed with high load molybdenum grease Precision CNC machined
Can Fit 1.5”- 5” Bracket lift of particular brands/ All Portal Gear Lifts / 1.5”- 5” A-arms of particular brands
1-year ltd warranty
