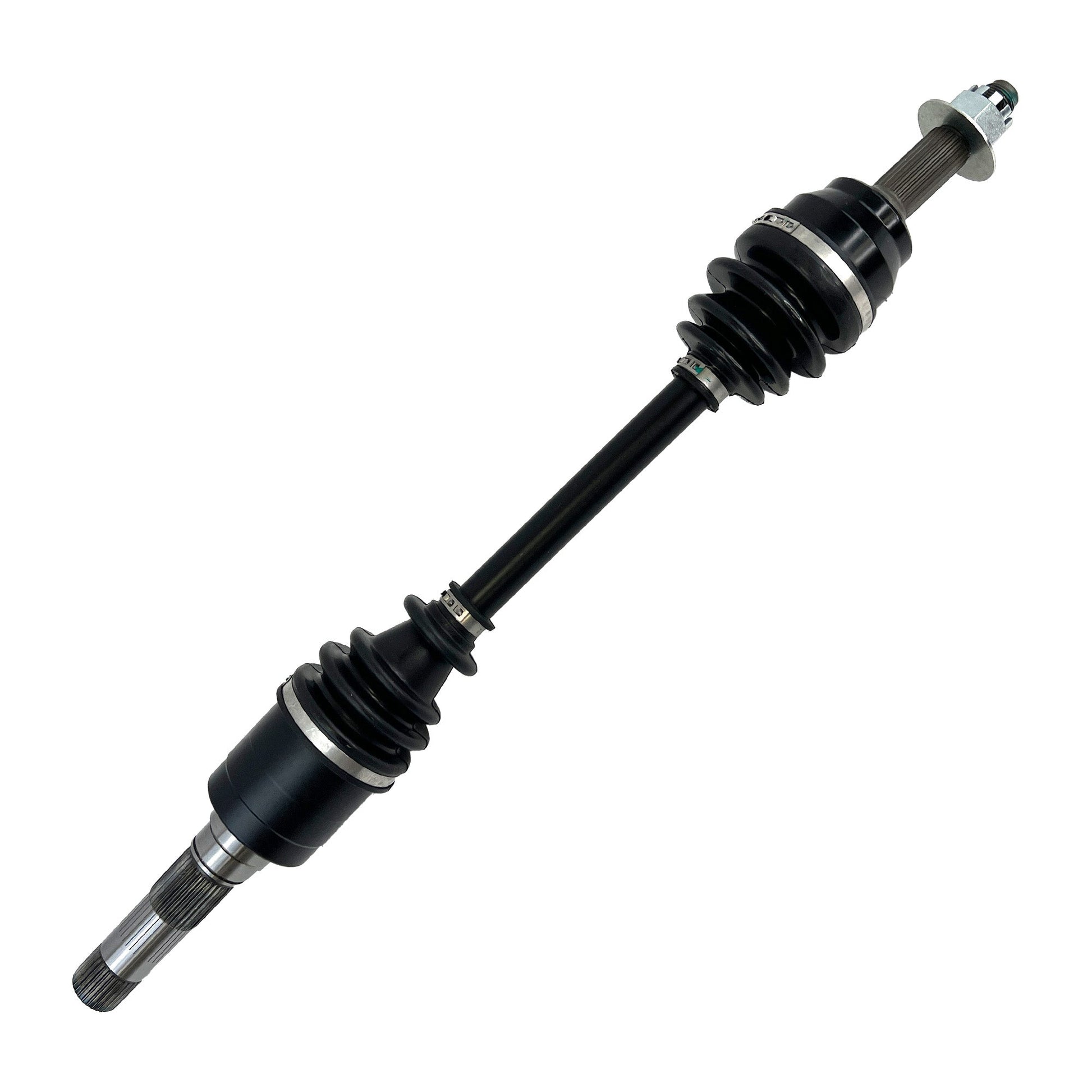

Demon HD Axle for 2012-2022 John Deere Gator XUV Rear Right

OEM Ref
AM 140127
AM 146271

Competitor Reference
RA-9-27-R-R-0

Fitment Summary
2012-2016 John Deere Gator XUV 550 Rear Right
2012-2016 John Deere Gator XUV 550 S4 Rear Right
2016-2017 John Deere Gator XUV 560 Rear Right
2016-2017 John Deere Gator XUV 560 S4 Rear Right
2016-2017 John Deere Gator XUV 590i Rear Right
2016-2017 John Deere Gator XUV 590i Power Steering Rear Right
2016-2017 John Deere Gator XUV 590i S4 Rear Right
2016-2017 John Deere Gator XUV 590i S4 Power Steering Rear Right
2018-2022 John Deere Gator XUV 560E Rear Right
2018-2022 John Deere Gator XUV 560E S4 Rear Right
2018-2022 John Deere Gator XUV 590E Rear Right
2018-2022 John Deere Gator XUV 590E S4 Rear Right
2018-2022 John Deere Gator XUV 590M Rear Right
2018-2022 John Deere Gator XUV 590M S4 Rear Right
2019 John Deere Gator XUV 590M Special Edition Black Rear Right

Description
Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

Features
15%-20% increase in diameter compared to regular axle
Inner cage made up of 4340 chromoly steel
Dual heat treated high strength chromoly steel shaft
Thermoplastic polyester elastomer (TPEE) Boot
10%-15% increase in CV joint size compared to regular joints
Wider articulation angles
Dual plunge design prevents axle from binding
Packed with high load molybdenum grease Precision CNC machined
Can Fit 1.5”- 5” Bracket lift of particular brands/ All Portal Gear Lifts / 1.5”- 5” A-arms of particular brands
1-year ltd warranty
