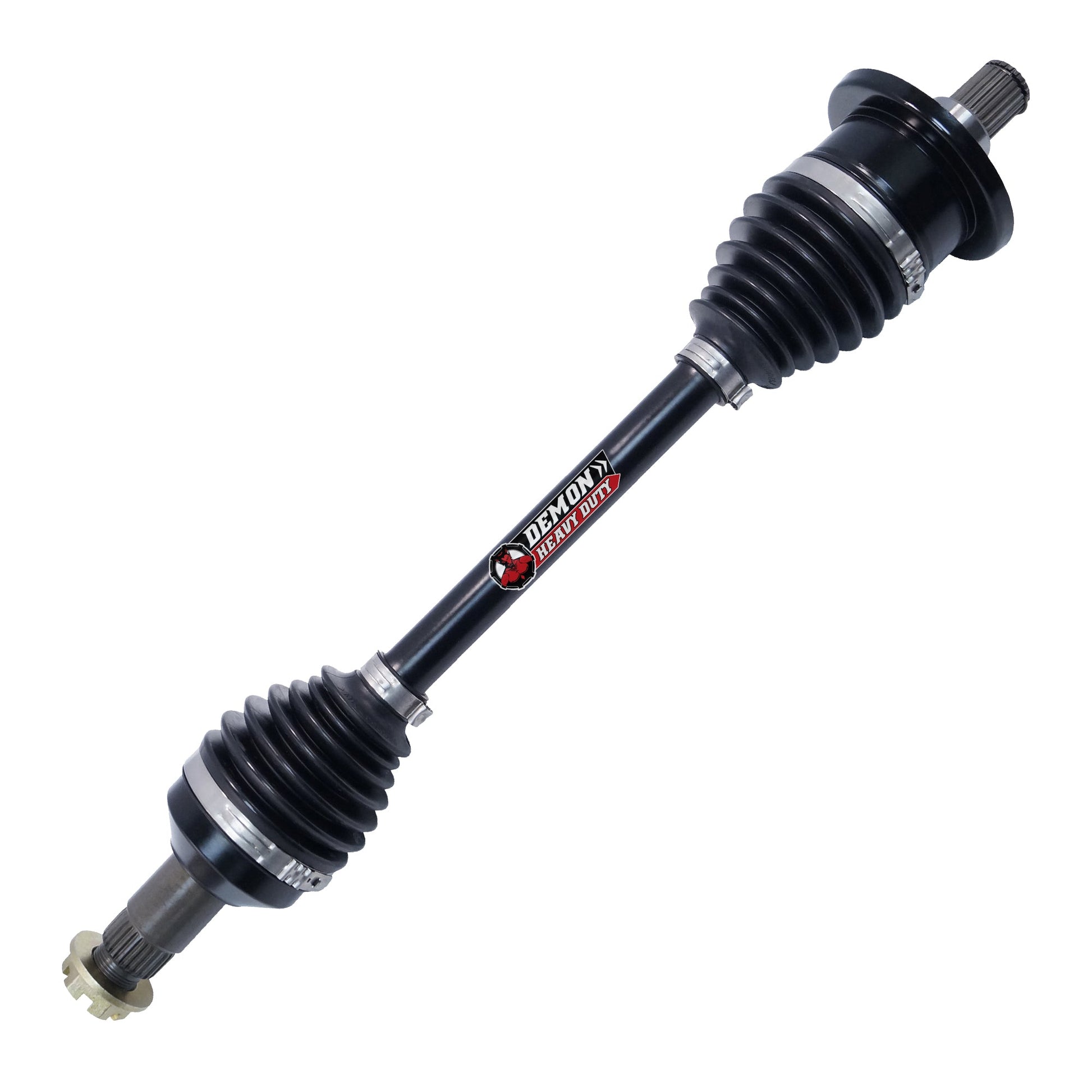

Demon HD Axle for 2012-2014 Arctic Cat TRV 450,550,400,500 Front Left

OEM Ref
0502-813
1502-345
1502-799
1502-873

Competitor Reference
1502-345-DOJ

Fitment Summary
2006-2008 Arctic Cat 400 4x4 Front Left
2006-2008 Arctic Cat 400 4x4 Auto Front Left
2006-2007 Arctic Cat 400 4x4 Auto LE Front Left
2006 Arctic Cat 400 4x4 Auto TBX Front Left
2006-2010 Arctic Cat 400 4x4 Auto TRV Front Left
2006-2008 Arctic Cat 500 4x4 Auto FIS Front Left
2006 Arctic Cat 500 4x4 Auto TBX Front Left
2006-2008 Arctic Cat 500 4x4 FIS Front Left
2006 Arctic Cat 650 V-2 4x4 Auto Front Left
2006 Arctic Cat 650 V-2 4x4 Auto LE/TS Front Left
2006 Arctic Cat 700 EFI 4x4 Auto SE Front Left
2007 Arctic Cat 400 4x4 Auto TRV Plus Front Left
2007-2008 Arctic Cat 500 4x4 Auto TRV Front Left
2007-2010 Arctic Cat 650 H1 4x4 Auto Front Left
2007 Arctic Cat 650 H1 4x4 Auto LE Front Left
2007-2009 Arctic Cat 650 H1 4x4 Auto TBX Front Left
2007-2008 Arctic Cat 650 H1 4x4 Auto TRV Plus Front Left
2007 Arctic Cat 650 H1 4x4 Auto TRV Plus LE Front Left
2007-2008 Arctic Cat 700 Diesel Front Left
2007-2008 Arctic Cat 700 EFI 4x4 Auto Front Left
2007 Arctic Cat 700 EFI 4x4 Auto LE Front Left
2008 Arctic Cat 700 EFI 4x4 Auto M4 Front Left
2008-2011 Arctic Cat 700 EFI 4x4 Auto TRV Cruiser Front Left
2008 Arctic Cat 700 EFI 4x4 Auto TRV LE Front Left
2008-2009 Arctic Cat 700 EFI H1 4x4 Auto SE Front Left
2009 Arctic Cat 500 4x4 Front Left
2009 Arctic Cat 500 4x4 Auto Front Left
2009 Arctic Cat 650 H1 4x4 Auto TRV Front Left
2009-2010 Arctic Cat 700 EFI H1 4x4 Auto Front Left
2009-2010 Arctic Cat 700 EFI H1 4x4 Auto LE Front Left
2010 Arctic Cat 650 H1 4x4 Auto Mud Pro Front Left
2010 Arctic Cat 700 EFI H1 4x4 Auto TBX Front Left
2010-2011 Arctic Cat 700 EFI H1 4x4 Auto TRV Front Left
2010-2011 Arctic Cat 700 S Front Left
2010-2011 Arctic Cat 700 TRV GT Front Left
2011-2014 Arctic Cat 700 Front Left
2011-2014 Arctic Cat 700 LTD Front Left
2012 Arctic Cat 700i Front Left
2012 Arctic Cat 700i GT Front Left
2012-2013 Arctic Cat 700i LTD Front Left
2012 Arctic Cat TRV 700i Cruiser Front Left
2012 Arctic Cat TRV 700i GT Front Left
2013-2014 Arctic Cat 500 XT Front Left
2013 Arctic Cat 700 Core Front Left
2013-2014 Arctic Cat 700 XT Front Left
2013-2014 Arctic Cat TRV 700 LTD Front Left
2013-2014 Arctic Cat TRV 700 XT Front Left
2014 Arctic Cat 500 Front Left

Description
Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

Features
15%-20% increase in diameter compared to regular axle
Inner cage made up of 4340 chromoly steel
Dual heat treated high strength chromoly steel shaft
Thermoplastic polyester elastomer (TPEE) Boot
10%-15% increase in CV joint size compared to regular joints
Wider articulation angles
Dual plunge design prevents axle from binding
Packed with high load molybdenum grease Precision CNC machined
Can Fit 1.5”- 5” Bracket lift of particular brands/ All Portal Gear Lifts / 1.5”- 5” A-arms of particular brands
1-year ltd warranty
