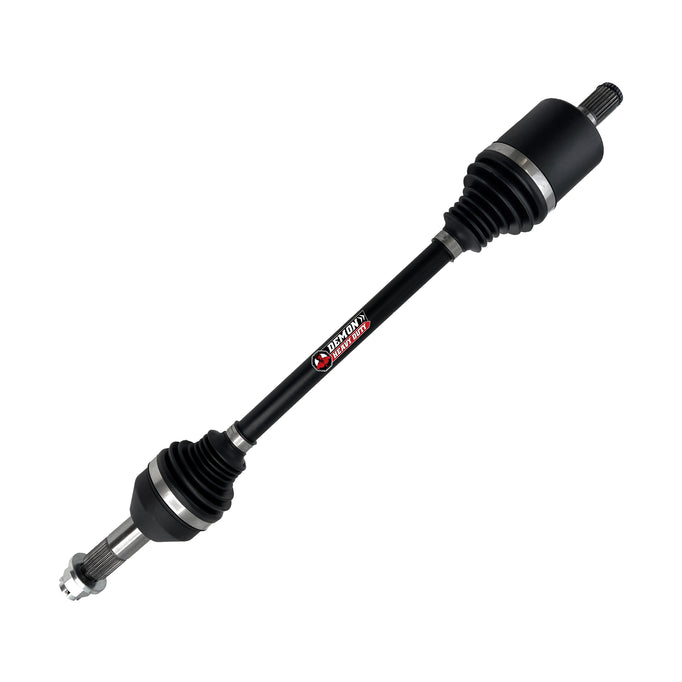

Demon HD Axle for 2020-2025 Kawasaki KRX 1000/KRT1000 Rear Left,Right

Competitor Reference
AX-4-88-RL-0-DT
AX-4-88-RR-0-DT

Fitment Summary
2020-2025 Kawasaki KRF1000 Teryx KRX 1000 Rear Left,Rear Right
2021-2024 Kawasaki KRF1000 Teryx KRX 1000 Special Edition Rear Left,Rear Right
2021-2025 Kawasaki KRF1000 Teryx KRX 1000 Trail Edition Rear Left,Rear Right
2021-2025 Kawasaki KRF1000 Teryx KRX 1000 eS Rear Left,Rear Right
2022-2024 Kawasaki KRT1000 Teryx KRX 4 1000 eS Special Edition Rear Left,Rear Right
2023-2024 Kawasaki KRT1000 Teryx KRX 4 1000 SE Rear Left,Rear Right
2023-2025 Kawasaki KRT1000 Teryx KRX 4 1000 eS Rear Left,Rear Right
2025 Kawasaki KRT1000 Teryx KRX 4 1000 Rear Left,Rear Right
2025 Kawasaki KRT1000 Teryx KRX 4 1000 Blackout Edition Rear Left,Rear Right
2025 Kawasaki KRT1000 Teryx KRX 4 1000 Lifted Edition Rear Left,Rear Right

Description
Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

Features
15%-20% increase in diameter compared to regular axle
Inner cage made up of 4340 chromoly steel
Dual heat treated high strength chromoly steel shaft
Thermoplastic polyester elastomer (TPEE) Boot
10%-15% increase in CV joint size compared to regular joints
Wider articulation angles
Dual plunge design prevents axle from binding
Packed with high load molybdenum grease Precision CNC machined
Can Fit 1.5”- 5” Bracket lift of particular brands/ All Portal Gear Lifts / 1.5”- 5” A-arms of particular brands
1-year ltd warranty
