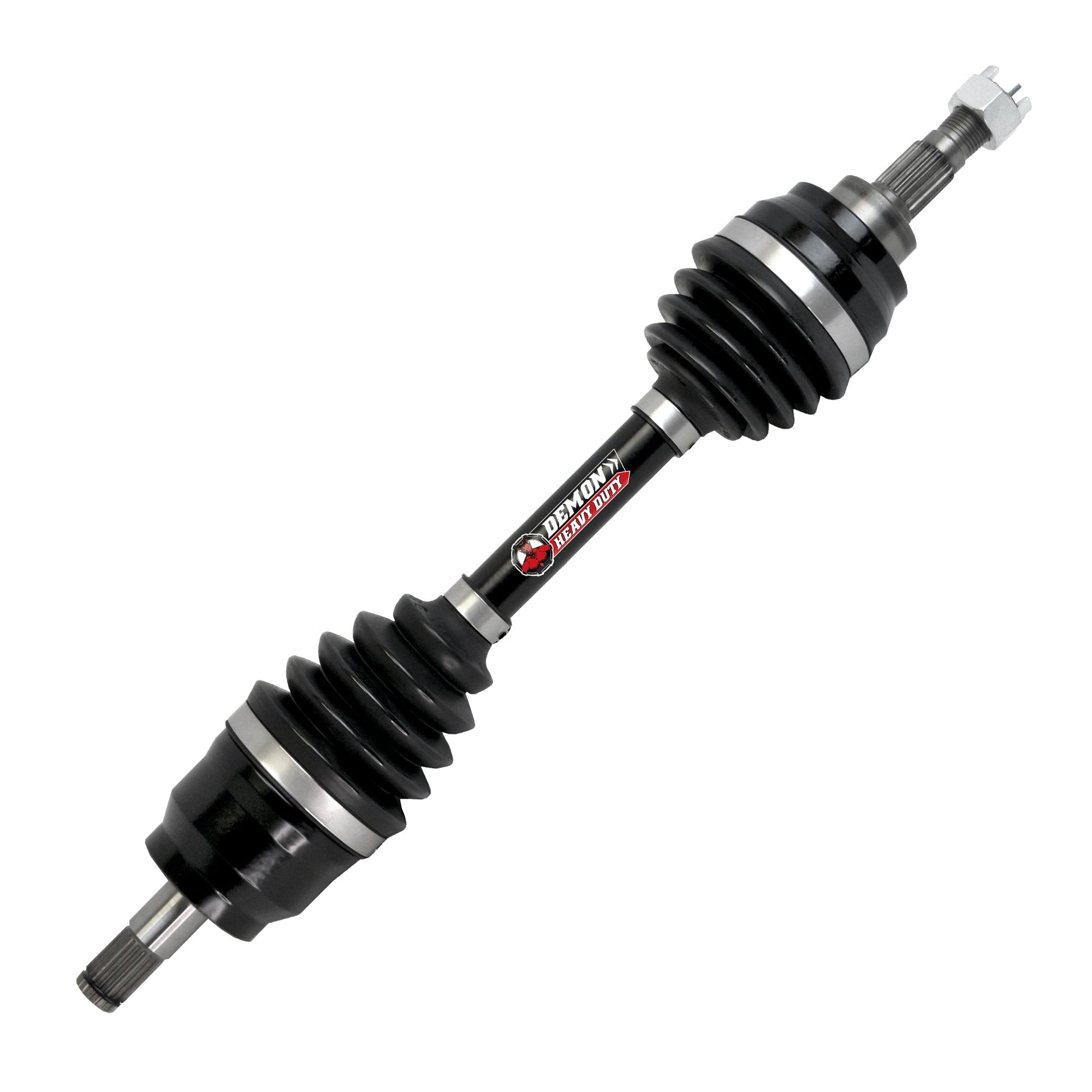

Demon HD Axle for 2007-2014 Honda TRX420 Front Left,Right

OEM Ref
44350-HP5-601
44250-HP5-601
44350-HP7-A31
44250-HP7-A31
+
44220-HP5-601

Competitor Reference
SA-3-18-F

Fitment Summary
2007-2013 Honda TRX420FE FourTrax Rancher 4X4 ES Front Left,Front Right
2007-2013 Honda TRX420FM FourTrax Rancher 4X4 Front Left,Front Right
2007-2013 Honda TRX420TE FourTrax Rancher ES Front Left,Front Right
2007-2013 Honda TRX420TM FourTrax Rancher Front Left,Front Right
2009-2014 Honda TRX420FA Rancher AT Front Left,Front Right
2009-2013 Honda TRX420FPA Rancher AT 4x4 w/ Power Steering Front Left,Front Right
2009-2013 Honda TRX420FPE Rancher ES 4x4 w/ Power Steering Front Left,Front Right
2009-2013 Honda TRX420FPM Rancher 4x4 w/ Power Steering Front Left,Front Right

Description
Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

Features
15%-20% increase in diameter compared to regular axle
Inner cage made up of 4340 chromoly steel
Dual heat treated high strength chromoly steel shaft
Thermoplastic polyester elastomer (TPEE) Boot
10%-15% increase in CV joint size compared to regular joints
Wider articulation angles
Dual plunge design prevents axle from binding
Packed with high load molybdenum grease Precision CNC machined
Can Fit 1.5”- 5” Bracket lift of particular brands/ All Portal Gear Lifts / 1.5”- 5” A-arms of particular brands
1-year ltd warranty
